Miniature Drop-In MIC Isolators/Circulators
4.0GHz - 24GHz

Features

Description

Less Weight
Magnetically shielded
Unibody Construction

These miniature isolators are used in commercial, military, and space applications. These isolators can be integrated in stripline as well as microstrip applications. Stainless steel unibody construction is rugged and reliable for high-reliability applications.

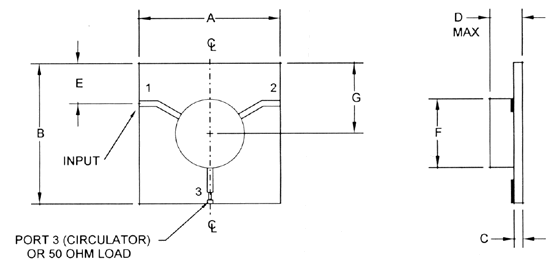

Outline Drawing of Microstrip Isolator/Circulator

Outline #

.984

.039

.23

.236

.59

.49

.790

.040

.45

.197

.47

.29

.618

.039

.27

.120

.47

.26

.512

.031

.27

.120

.29

.24

.495

.025

.18

.150

.23

.28

.275

.025

.16

.059

.12

.275

.020

.12

.059

.12

.236

.015

.15

.039

.10

.12

Frequency
(GHz)

Model #

Circulator

Isolator

Iso (dB)

Typ.

Min

Loss (dB)

Typ.

Max

VSWR

Typ.

Max

Power (watts)

Forward

Load

Temp
�C

Outline #

2.30 - 2.70
2.50 - 2.90
3.60 - 4.20
5.90 - 6.45
7.20 - 8.20
9.60 - 14.4
11.0 - 12.5
12.0 - 13.5
14.5 - 15.5
17.7 - 19.7
21.2 - 23.6

3W4NH	2W4NH
3W4NJ	2W4NJ
3W5NH	2W5NH
3W7NH	2W7NH
3W7NJ	2W7NJ
3W8BJ	2W8BJ
3W8NJ	2W8NJ
3W9NJ	2W9NJ
3W9NK	2W9NK
3W9NN	2W9NN
3W9NP	2W9NP

22	20
22	20
22	20
22	20
22	20
17	15
20	18
20	18
20	18
20	17
20	17

.40	.50
.40	.50
.40	.50
.40	.50
.40	.50
.60	1.0
.50	.60
.50	.60
.50	.60
.70	.80
.70	.90

1.18	1.25
1.18	1.25
1.18	1.25
1.18	1.25
1.18	1.25
1.35	1.45
1.20	1.30
1.20	1.30
1.20	1.30
1.20	1.30
1.20	1.30

10	4	.25
10	4	.25
10	4	.25
10	4	.25
10	4	.25
20	10	10
10	4	.25
10	4	.25
10	4	.25
10	4	.25
10	4	.25

-10 to 50

0 to 70

-10 to 50

1
1
2
3
4
5
6
6
7
8
8

Correct frequency identification assigned by factory (A-Z). Specifications subject to change without notice.
