FEATURES
|
DESCRIPTION
|
- 2, 3, 4, 6, 8 & 16 Channel Models
- Use as Divider Combiner
- Low Loss
- High Input Power
- Compact Size
- Optional: Isolation up to 90dB
|
Our standard coaxial dividers/combiners feature low insertion
loss, high isolation, and 10 watt power handling capability, independent of load VSWR.
Intended for use in base station applications, these units are offered in 2, 3, 4, 6, 8
and 16 channel modes and cover the full transmit and receive bands for AMPS, GSM, or PCS
systems. Standard units are offered with SMA female connectors. Units can be supplied with
other connector types as well as higher power handling capabilities up to 500 watts.
|
| |

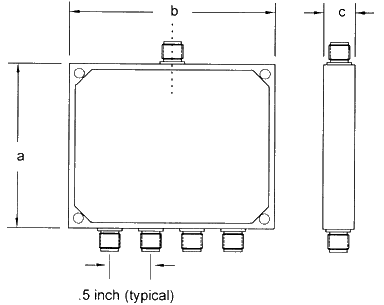

| Outline Drawing of Divider Combiner |
| Model Number 10A*N*-4S |
 |
|
| 800MHz
- 900MHz, Input Power: 10 Watts Max |
| Channels |
Isolation
(dB) Min |
Insertion Loss
(dB) Max |
Amplitude Balance
(dB) Max |
VSWR
Max |
Part Number |
Size
Inches (a x b x c) |
| 2 |
20 |
.25 |
.2 |
1.2 |
10A2NA-2S |
2.00 x 1.50 x 0.38 |
| 3 |
20 |
.30 |
.3 |
1.3 |
10A2NA-3S |
2.75 x 2.00 x 0.38 |
| 4 |
20 |
.30 |
.3 |
1.2 |
10A2NA-4S |
2.00 x 2.50 x 0.38 |
| 6 |
20 |
.40 |
.4 |
1.3 |
10A2NA-6S |
3.50 x 3.50 x 0.38 |
| 8 |
20 |
.50 |
.5 |
1.2 |
10A2NA-8S |
2.75 x 4.50 x 0.38 |
| 16 |
20 |
.60 |
.5 |
1.3 |
10A2NA-16S |
3.00 x 8.50 x 0.38 |
|
|
|
|
|
|
|
|
| |
| 890MHz
- 960MHz, Input Power: 10 Watts Max |
| Channels |
Isolation
(dB) Min |
Insertion Loss
(dB) Max |
Amplitude Balance
(dB) Max |
VSWR
Max |
Part Number |
Size
Inches (a x b x c) |
| 2 |
20 |
.25 |
.2 |
1.2 |
10A2NB-2S |
2.00 x 1.50 x 0.38 |
| 3 |
20 |
.30 |
.3 |
1.3 |
10A2NB-3S |
2.75 x 2.00 x 0.38 |
| 4 |
20 |
.30 |
.3 |
1.2 |
10A2NB-4S |
2.00 x 2.50 x 0.38 |
| 6 |
20 |
.40 |
.4 |
1.3 |
10A2NB-6S |
3.50 x 3.50 x 0.38 |
| 8 |
20 |
.50 |
.5 |
1.2 |
10A2NB-8S |
2.75 x 4.50 x 0.38 |
| 16 |
20 |
.60 |
.5 |
1.3 |
10A2NB-16S |
3.00 x 8.50 x 0.38 |
|
|
|
|
|
|
|
|
| |
| 1700MHz
- 1990MHz, Input Power: 10 Watts Max |
| Channels |
Isolation
(dB) Min |
Insertion Loss
(dB) Max |
Amplitude Balance
(dB) Max |
VSWR
Max |
Part Number |
Size
Inches (a x b x c) |
| 2 |
20 |
.30 |
.2 |
1.2 |
10A4NC-2S |
2.00 x 1.50 x 0.38 |
| 3 |
20 |
.40 |
.3 |
1.3 |
10A4NC-3S |
2.75 x 2.00 x 0.38 |
| 4 |
20 |
.40 |
.3 |
1.2 |
10A4NC-4S |
2.00 x 2.50 x 0.38 |
| 6 |
20 |
.50 |
.4 |
1.3 |
10A4NC-6S |
3.50 x 3.50 x 0.38 |
| 8 |
20 |
.60 |
.5 |
1.2 |
10A4NC-8S |
2.75 x 4.50 x 0.38 |
| 16 |
20 |
.80 |
.5 |
1.3 |
10A4NC-16S |
3.00 x 8.50 x 0.38 |
|
|
|
|
|
|
|
|
| |
| 2000MHz
- 2300MHz, Input Power: 10 Watts Max |
| Channels |
Isolation
(dB) Min |
Insertion Loss
(dB) Max |
Amplitude Balance
(dB) Max |
VSWR
Max |
Part Number |
Size
Inches (a x b x c) |
| 2 |
20 |
.30 |
.2 |
1.2 |
10A4ND-2S |
2.00 x 1.50 x 0.38 |
| 3 |
20 |
.40 |
.3 |
1.3 |
10A4ND-3S |
2.75 x 2.00 x 0.38 |
| 4 |
20 |
.40 |
.3 |
1.2 |
10A4ND-4S |
2.00 x 2.50 x 0.38 |
| 6 |
20 |
.50 |
.4 |
1.3 |
10A4ND-6S |
3.50 x 3.50 x 0.38 |
| 8 |
20 |
.60 |
.5 |
1.2 |
10A4ND-8S |
2.75 x 4.50 x 0.38 |
| 16 |
20 |
.80 |
.5 |
1.3 |
10A4ND-16S |
3.00 x 8.50 x 0.38 |
|
|
|
|
|
|
|
|
| |
| 2300MHz
- 2700MHz, Input Power: 10 Watts Max |
| Channels |
Isolation
(dB) Min |
Insertion Loss
(dB) Max |
Amplitude Balance
(dB) Max |
VSWR
Max |
Part Number |
Size
Inches (a x b x c) |
| 2 |
20 |
.30 |
.2 |
1.2 |
10A4NE-2S |
2.00 x 1.50 x 0.38 |
| 3 |
20 |
.40 |
.3 |
1.3 |
10A4NE-3S |
2.75 x 2.00 x 0.38 |
| 4 |
20 |
.40 |
.3 |
1.2 |
10A4NE-4S |
2.00 x 2.50 x 0.38 |
| 6 |
20 |
.50 |
.4 |
1.3 |
10ANE-6S |
3.50 x 3.50 x 0.38 |
| 8 |
20 |
.60 |
.5 |
1.2 |
10A4NE-8S |
2.75 x 4.50 x 0.38 |
| 16 |
20 |
.80 |
.5 |
1.3 |
10A4NE-16S |
3.00 x 8.50 x 0.38 |
|
|
|
|
|
|
|
|
| Specifications
subject to change without notice |
