Isolators/Circulators...

Broadband Coaxial Circulators/Isolators
1.0GHz - 18GHz

Features

Description

Low Insertion Losses
High Isolation
Low Intermodulation Products
High Power
Compact Sizes
Magnetically Shielded

The standard unit has SMA female connectors. Standard load can handle 60 watts (pk), 1 watt (avg). Options such as termination type and location, connector type and location, power handling, mounting holes, broader temperature ranges, RF and magnetic shielding, and direction of circulation are available upon request.

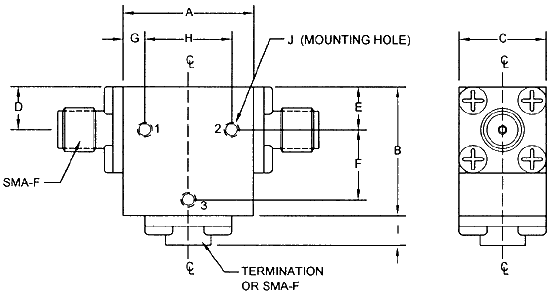

Outline Drawing of Coaxial Isulator/Circulator

Outline #	A	B	C	D	E	F	G	H	I	J
1	2.60	2.60	.75	.28	.37	2.00	.30	2.00	.17	4-40 x .15 DP, 6 PL
2	1.62	1.72	.69	.35	.35	1.25	.12	1.38	.17	4-40 x .15 DP, 6 PL
3	1.25	1.25	.70	.25	.25	.80	.125	1.00	.17	2-56 x .14 DP, 6PL
4	1.00	1.00	.50	.25	.25	-	.09	.82	.17	2-56 x .13 DP, 4 PL
5	.75	.75	.50	.25	.25	-	.062	.625	.17	2-56 x .13 DP, 4 PL
6	.50	.56	.375	.19	.19	-	.08	.34	.17	0-80 x .10 DP, 4 PL
7	.50	.62	.50	.25	.19	-	.08	.34	.17	0-80 x .13 DP, 4 PL

Frequency
(GHz)

Model #

Circulator

Isolator

Iso (dB)

Typ.

Min

Loss (dB)

Typ.

Max

VSWR

Typ.

Max

Power (watts)

Forward

Load

Temp �C

Outline#

1.0 - 2.0
2.0 - 4.0
2.6 - 5.2
3.0 - 6.0
4.0 - 8.0
5.0 - 10.0
6.0 - 12.0
6.2 - 18.0
8.0 - 12.4
8.0 - 18.0
12.0 - 18.0

3A3BD	2A3BD
3A5BC	2A5BC
3A5BH	2A5BH
3A6BC	2A6BC
3A7BB	2A7BB
3A7BC	2A7BC
3A8BQ	2A8BQ
3A9BAB	2A9BAB
3A8BG	2A8BG
3A9BD	2A9BD
3A9BE	2A9BE

20	17
20	18
20	18
20	18
20	18
20	18
20	18
13	12
20	18
16	14
20	18

.35	.5
.35	.5
.35	.5
.35	.5
.35	.5
.35	.5
.40	.6
.80	1.0
.40	.5
.60	.7
.50	.6

1.25	1.35
1.25	1.30
1.25	1.30
1.25	1.30
1.25	1.30
1.25	1.30
1.25	1.30
1.58	1.67
1.25	1.30
1.40	1.50
1.25	1.30

100	25	1
200	50	1
300	50	1
400	50	1
400	50	1
400	50	1
500	50	1
200	60	1
200	60	1
200	60	1
200	60	1

0 to 50

-25 to 85

0 to 70

-40 to 80

-30 to 80

0 to 70

-30 to 80

1
2
3
3
4
4
5
6
7
7
7
